Z35019-RTP 3.5 Inch TFT LCD Display Resistive Touch Panel 320*480 4 Wire SPI/MCU Interface ILI9488 Driver

  • Size: 3.5 inch

  • Resolution: 320*480

  • LCD Interface: 4 Wire SPI/MCU 8bit 16 bit

  • Touch Panel: Resistive

  • Driver IC: ILI9488

  • View Angle: 12 o'clock

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

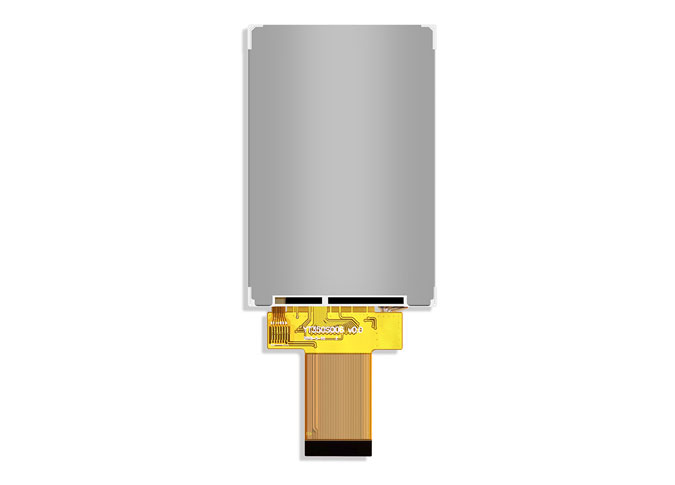

tft resistive screen
tft resistive screen

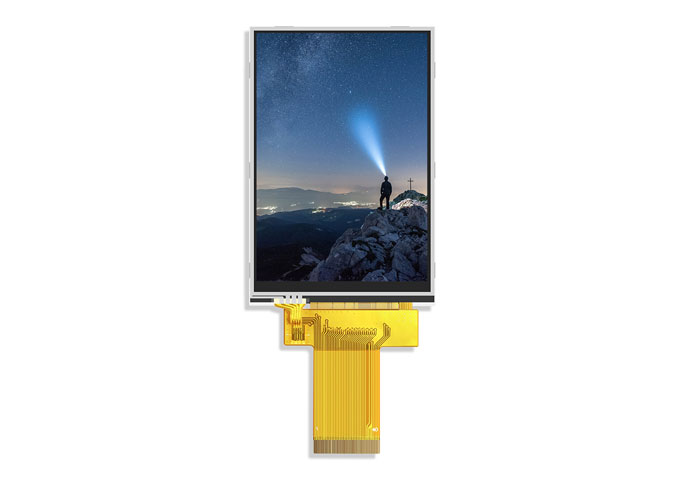

tft resistive touch
tft resistive touchscreen

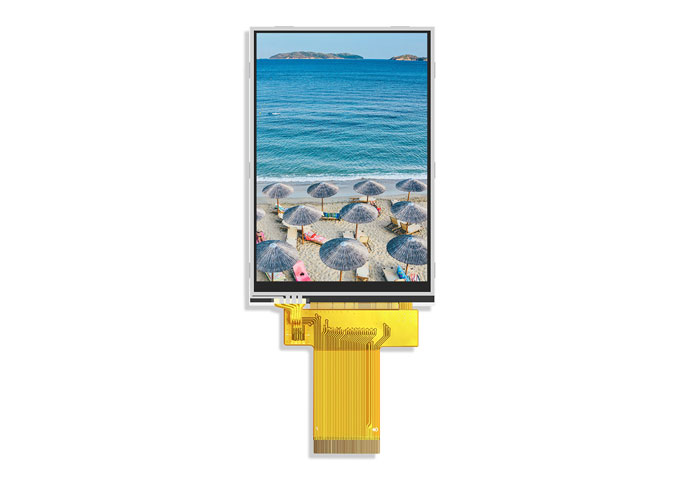

resistive touch screen vs capacitive

Overview of Z35019-RTP 3.5 Inch TFT LCD Display Resistive Touch Panel 320*480 4 Wire SPI/MCU Interface ILI9488 Driver

1

Z35019-RTP is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with resistive touch panel, QVGA 240*320. This TFT touch display is built-in ST7789V LCD driver IC. This a-Si touch square TFT LCD module come with 4 Wire SPI interface.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, as a custom LCD screen manufacturer, we can also customize for you.

3

As a China LCD screen factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 3.5 inch LCD touch screen is widely used in medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, infrared thermometer, hematometer, etc.

General Specifications 3.5 Inch TFT LCD Display Resistive Touch Panel 320*480 4 Wire SPI/MCU Interface ILI9488 Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320*480

pixels

3

Pixel Pitch

0.153*0.153

um

4

LCM Outline Dimension

(Without FPC)

55.26*84.52*4

mm

5

Touch Panel

Resistive

-

6

LCD Active Area

48.96*73.44

mm

7

View Direction (Gray Inversion)

12 O'clock

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal white

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

Z35019-V1

-

15

Interface

4 Wire SPI/MCU 8bit 16 bit

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

8 parallel white LED

-

19

Luminance

-

nit

20

Weight

-

kg
