CD0695039 7 Inch IPS Display Module 600*1024 MIPI Interface 400nit Brightness

  • Size: 6.95 inch

  • Resolution: 600*1024

  • Active Area: 89.28*152.37mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 400 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

7 inch ips display
7 inch ips display
7 inch ips display wholesale
7 inch ips display manufacturer
7 inch ips display bulk
7 inch ips display company
7 inch ips display is wholesale
7 inch ips display is manufacturer
7 inch ips display is bulk
7 inch ips display is company
7 inch ips display a wholesale
7 inch ips display a manufacturer
7 inch ips display a bulk
7 inch ips display a company
wholesale is 7 inch ips display
manufacturer is 7 inch ips display
bulk is 7 inch ips display
company is 7 inch ips display
7 inch ips display
7 inch ips display wholesale
7 inch ips display manufacturer
7 inch ips display bulk
7 inch ips display company
wholesale 7 inch ips display
bulk 7 inch ips display
company 7 inch ips display
7 inch ips display a company
7 inch ips display a bulk
7 inch ips display a wholesale
7 inch ips display company
7 inch ips display bulk
7 inch ips display manufacturer
7 inch ips display wholesale
7 inch ips display a manufacturer
7 inch ips display

Overview of CD0695039 7 Inch IPS Display Module 600*1024 MIPI Interface 400nit Brightness

1

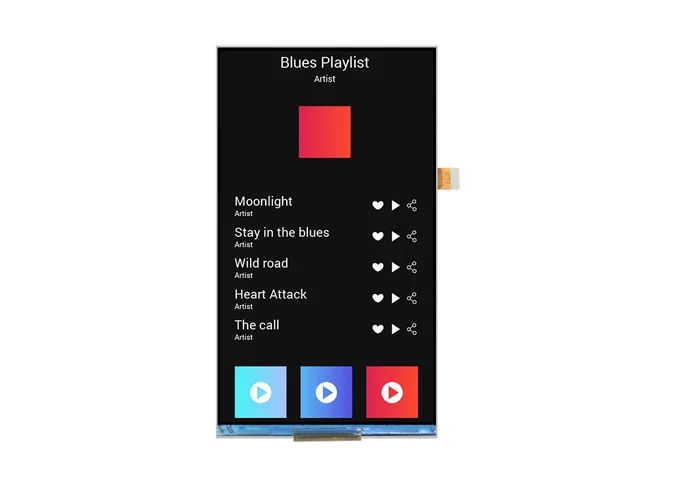

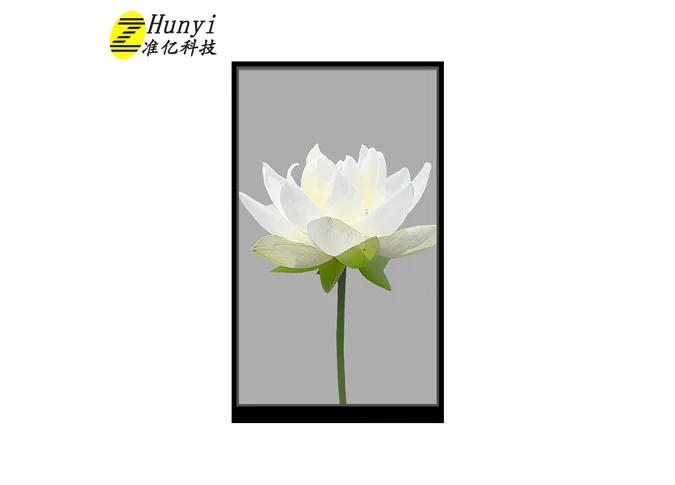

CD0695039 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 600*1024 resolution. IPS (In-plane Switching) technique make this 6.95" LCD module have a wider view angle. This LCD display is built-in OTA7290B-C driver IC. This a-Si TFT LCD module come with MIPI interface, 400cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc., we can provide China TFT LCD display module for you.

3

As a China LCD module manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 7 inch China TFT touch screen is widely used in Medical, visual doorbell, Vending, learning machine, ventilator, oscilloscope, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, etc.

Specification of 7 Inch IPS Display Module 600*1024 MIPI Interface 400nit Brightness


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.95

inch

2

Display Resolution

600 × RGB × 1024

pixels

3

Pixel Pitch

49.6 (H) × 148.8 (V)

um

4

LCM Outline Dimension

(Without FPC)

95.00 (W) ×163.15 (H) ×2.50 (T)

mm

5

LCD Outline Dimension

93.28 (W) × 159.82 (H) ×0.8 (T)

mm

6

LCD Active Area

89.28 (W) ×152.37 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

OTA7290B-C

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.7% Min: 3.95%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 600

-

14

FPC Version

CD0695039-JD0001-V1

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 50°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

19

Luminance

400

nit

20

Weight

0.088

kg


Interface Definition Description of 7 Inch IPS Display Module 600*1024 MIPI Interface 400nit Brightness


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

3

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

4

GND

Ground

5

D1P

MIPI-DSI Data differential signal input pins. (Data lane 1)

6

D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

7

GND

Ground

8

CLKP

MIPI-DSI CLOCK differential signal input pin

9

CLKN

MIPI-DSI CLOCK differential signal input pin

10

GND

Ground

11

D2P

MIPI-DSI Data differential signal input pins. (Data lane 2)

12

D2N

MIPI-DSI Data differential signal input pins. (Data lane 2)

13

GND

Ground

14

NC

NC

15

NC

NC

16

GND

Ground

17

GND

Ground

18

IOVCC

I/O POWER SUPPLY (1.8V)

19

IOVCC

I/O POWER SUPPLY (1.8V)

20

ID0

LCM ID

21

ID1

LCM ID

22

NC

NC

23

NC

NC

24

RES

Reset pin (1.8V)

25

NC

NC

26

NC

NC

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

NC

32

GND

Ground

33

GND

Ground

34

NC

NC

35-36

LEDA

POWER SUPPLY+ FOR BACKLIGHT

37

GND

Ground

38

VCC

POWER SUPPLY (3.3V)

39

VCC

POWER SUPPLY (3.3V)

40

NC

NC


Mechanical Drawing of 7 Inch IPS Display Module 600*1024 MIPI Interface 400nit Brightness
