OLED Module

OLED Module

Type: AMOLED, PMOLED

Size: 1.2"to 1.78"

Resolution: 64*128 to 454*454

Interface: MIPI, SPI, QSPI, MCU

Touch: Oncell or incell

View angle: 4JNCD/160

Type: AMOLED, PMOLED

Size: 1.2"to 1.78"

Resolution: 64*128 to 454*454

Interface: MIPI, SPI, QSPI, MCU

Touch: Oncell or incell

View angle: 4JNCD/160

OLED is also named Organic Light Emitting Diode.


It refers to the phenomenon that organic semiconductor materials and light-emitting materials emit light through carrier injection and recombination driven by an electric field. There are two types, AMOLED and PMOLED, the market mainly use AMOLED. OLED modules have light, high brightness, low consumption, fast respond, high resolution and good flexibility advantages.

Types of OLED Module

AMoled Module

AMoled Module

Size: 1.2", 1.28", 1.3", 1.39", 1.65", 1.78"

Resolution: 120*240 to 454*454

Interface: MIPI, SPI, QSPI, MCU

Touch: Oncell or incell

View angle: 4JNCD

View More
PMoled Module

PMoled Module

Size: 0.96" to 2.8"

Resolution: 64*128 to 64*256

Interface: SPI

Touch: Oncell or incell

View angle: 160

View More

Advantages of OLED Module

Low Consumption

OLED module don't need backlight, so it's low consuption.

Fast Respond

OLED module have a fast respond,it can reach microsecond level.

Wide View Angle

OLED module is self-light emitting, it's view angle can reach about 170°.

Light Weight

OLED module has a light weight, make it has a high seismic conefficient.

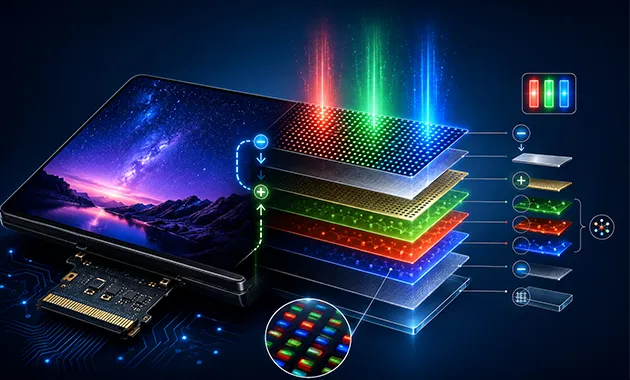

How Does OLED Module Work?

How Does OLED Module Work?

Before talk about how does OLED module work,

we have to know it is structure, it consist of Encapsulation, cathode, anode, EIL, ETL, HBL, EML, EBL, HTL, HIL and glass. OLED display work have to pass follow process, inject electron and holes, transport electron and holes, electron combine with holes, destimulation luminescence of exciton.
