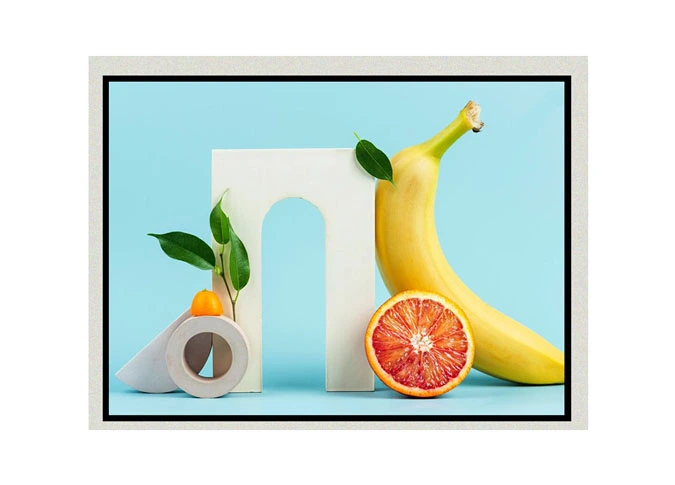

Z104X1-G10A High Brightness 10.4 inch LCD Module 1024x768 Resolution LVDS Interface

1

Panel Size

10.4 ”

inch

2

Number of Pixels

1024× RGB (3)×768

pixels

3

Active Area

211.2(H)x 158.48(V)

mm

4

Pixel Pitch

0.20625(H)×0.20625(V) x RGB

mm

5

Outline Dimension

225.8(W)×174.3(H)×5.6(D)

mm

6

Number of Colors

16.7M

-

7

Display Mode

Transmission mode, normally black

-

8

Viewing Direction

Full viewing

-

9

Display Format

RGB vertical stripe

-

11

Surface Treatment

Anti-Glare

-

12

Interface

LVDS

-

13

Backlight

White LED

-

14

Operation Temperature

-20~+70

℃

15

Storage Temperature

-30~80

℃

16

Weight

TBD(±10)

g

1

NC

No connection

2

GND

Ground

3

R IN3+

LVDS Signal(+)-channel 3

4

R IN3-

LVDS Signal(-)-channel 3

5

GND

Ground

6

RXCLK+

LVDS Clock Signal(+)

7

RXCLK-

LVDS Clock Signal(-)

8

GND

Ground

9

R IN2+

LVDS Signal(+)-channel 2

10

R IN2-

LVDS Signal(-)-channel 2

11

GND

Ground

12

R IN1+

LVDS Signal(+)-channel 1

13

R IN1-

LVDS Signal(-)-channel 1

14

GND

Ground

15

R IN0+

LVDS Signal(+)-channel 0

16

R IN0-

LVDS Signal(-)-channel 0

17

GND

Ground

18

NC

No connection

19

GND

Ground

20

SEL6/8

SELB=”0 ” 8Bit SELB=”1 ” 6Bit

Default value  "1"

21

NC

No connection

22

NC

No connection

23

NC

No connection

24

REVERSE

Reverse Panel function

25

GND

Ground

26

GND

Ground

27

GND

Ground

28

VCC

power Voltage for digital circuit 3.3V

29

VCC

power Voltage for digital circuit 3.3V

30

VCC

power Voltage for digital circuit 3.3V
