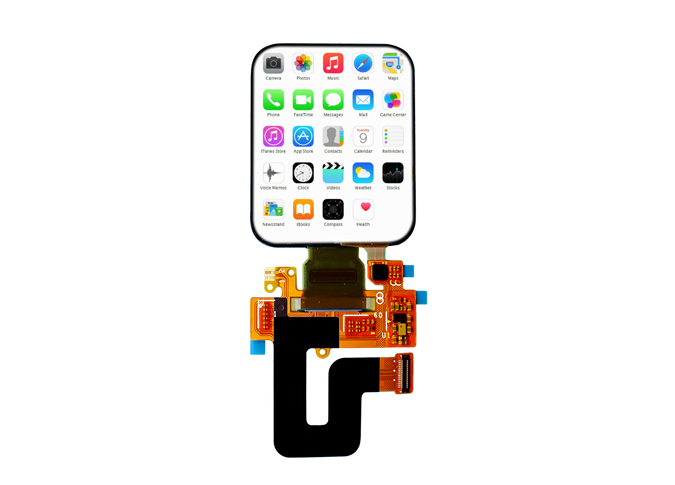

Z17801AM 1.78 Inch 368*448 OLED Display RM69090 Controller MIPI/SPI Interface

  • Size: 1.39

  • Resolution: 368*448

  • Type: AMOLED

  • Display Interface: MIPI/SPI

  • Driver IC: RM69090

  • CTP Driver: TMA525C

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
amoled module
amoled module
amoled raspberry pi
module oled
amoled display module

Overview of Z17801AM 1.78 Inch 368*448 OLED Display RM69090 Controller MIPI/SPI Interface

1

Z17801AM is a color OLED display with touch panel, QVGA 368*448. This TFT touch square TFT display is built-in RM69090 LCD driver IC. This a-Si TFT LCD touch module come with MIPI interface.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color etc, we can provide custom TFT display for you.

3

As a square LCD screen manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 1.79 inch LCD touch screen is widely used in smart watch, medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, etc.

Specification of Z17801AM 1.78 Inch 368*448 OLED Display RM69090 Controller MIPI/SPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.78

inch

2

Display Resolution

368*448

pixels

3

Pixel Pitch

78*78

um

4

LCM Outline Dimension

(Without FPC）

30.6*37.99*0.8mm

mm

5

Display Color

16.7 M

-

6

LCD Active Area

28.7*34.94

mm

7

View Direction (Gray Inversion)

IPS

-

8

Driver IC

RM69090

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

100000: 1

-

14

FPC Version

Z17801AM-V1

-

15

Interface

MIPI/SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

-

-

19

Luminance

350

nit

20

Weight

-

kg
