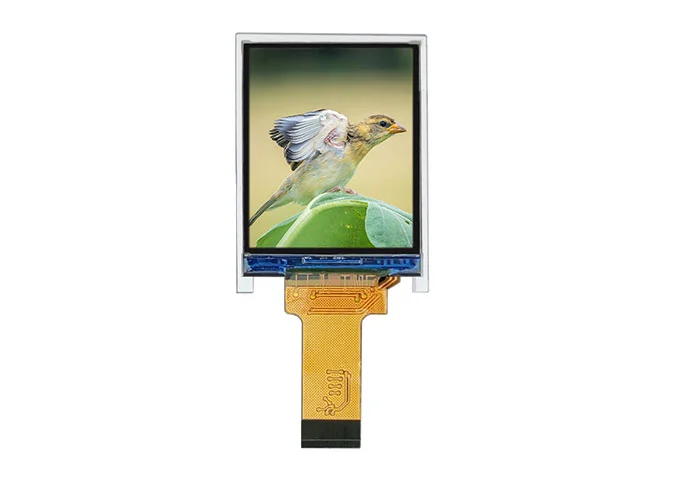

Z18001 1.8 Inch 128*160 LCD Display Panel 8-bit MCU Interface

  • Size: 1.77 inch

  • Resolution: 128*160

  • Interface: MCU 8-bit

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

1.8 inch tft display
1.8 inch tft display
1.8 tft lcd
1.8 tft lcd display
lcd 128x160
1.77 inch lcd display
st7735s display
display st7735

Overview of Z18001 1.8 Inch 128*160 LCD Display Panel 8-bit MCU Interface

1

Z18001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 128*160 resolution. IPS (In-plane Switching) technique make this 1.77" LCD module have a wider view angle. This wholesale LCD display module is built-in GC9106 driver IC. This a-Si TFT LCD module come with 8-bit MCU interface, 350 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, as a professional custom LCD display manufacturer, we can also customize for you.

3

As the leading China LCD module manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 1.77 inch LCD screen is smart watch, medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, etc.

Specifications of Z18001 1.8 Inch 128*160 LCD Display Panel 8-bit MCU Interface


ItemMain DisplayUnit
Number of Pixels128 * RGB * 160Pixel
LCM Outline Dimension34.00 (W) * 45.80 (H) * 2.45 (T)mm
LCD Outline Dimension31.83 (W) * 41.42 (H) *1.0 (T)mm
Active Area28.03 * 35.04mm
Pixel Pitch0.073 * 0.219mm
Display ModeNormal White
Pixel ArrangementRGB vertical stripe
Viewing Direction12 o'clock
Color ConfigurationRGB
LCD TransmittanceTyp: 6.9%; Min: 6.21%
LCD Contrast RatioTyp: 300; Min: 200
FPC VersionZ018001-EWQ001 V3
InterfaceMCU 8-bit bus interface
Operating Temperature-30℃ ~ 80℃
Storage Temperature-40℃ ~ 85℃
Backlight arrangementLED / 3 Parallel
Luminance-
Weight-


Interface Definition Description of Z18001 1.8 Inch 128*160 LCD Display Panel 8-bit MCU Interface


PIN NO.PIN DEF.FUNCTION DEC.
1LED-KPOWER SUPPLY- FOR BACKLIGHT CATHODE
2LED-APOWER SUPPLY+ FOR BACKLIGHT ANODE
3GNDGround
4VCIPOWER SUPPLY (2.8V)
5IOVCCI/O  POWER SUPPLY (1.8V)
6TEThis pin is FMARK, if not use, leave it open
7CSChip selection signal.
8RESETReset Signal pin (1.8V)
9RSGround
10WRWrite strobe signal.
11RDRead strobe signal.
12B7MCU parallel interface data bus.
13B6MCU parallel interface data bus.
14B5MCU parallel interface data bus.
15B4MCU parallel interface data bus.
16B3MCU parallel interface data bus.
17B2MCU parallel interface data bus.
18B1MCU parallel interface data bus.
19B0MCU parallel interface data bus.
20GNDGround
