Z24008 2.4 Inch IPS LCD Display 240*320 MIPI Interface

  • Size: 2.4 inch

  • Resolution: 240*320

  • Interface: MCU

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd display module in china
lcd display module in china
lcd display module manufacturer
lcd display panel supplier
lcd display module supplier
lcd display price china
lcd display panel factory
lcd module china
lcd module factory
lcd module company

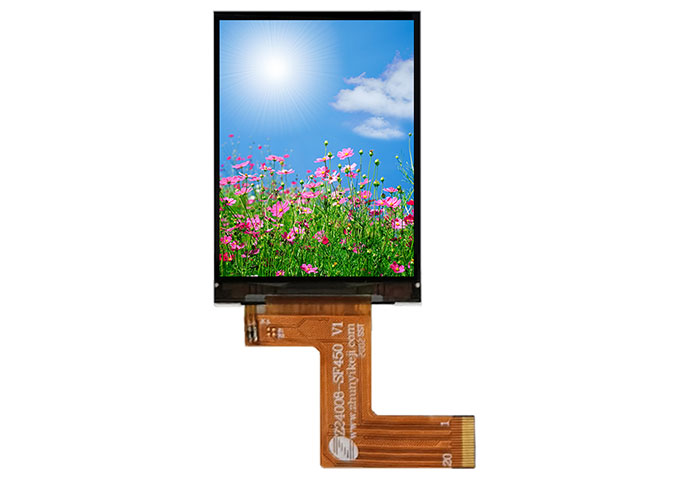

Overview of Z24008 2.4 Inch IPS LCD Display 240*320 MIPI Interface

1

Z24008 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*320 resolution. IPS (In-plane Switching) technique make this 2.4" LCD module have a wider view angle. This wholesale display screen is built-in JD9852 driver IC. This a-Si TFT LCD module come with MCU interface, 350 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight etc, we can also provide custom LCD display module for you.

3

Our display module factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 2.4 inch LCD screen is medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, etc.

Specifications of 2.4 Inch IPS LCD Display 240*320 MIPI Interface


Item

Main Display

Unit

Number of Pixels

240 * RGB * 320

Pixel

LCM Outline Dimension

40.52 (W) * 57.00 (H) * 2.19 (T)

mm

LCD Outline Dimension

39.72 (W) * 55.96 (H) * 0.8 (T)

mm

Active Area

36.72 * 48.96

mm

Pixel Pitch

0.051 * 0.153

mm

Display Mode

Normal Black


Pixel Arrangement

R.G.B Stripe


Viewing Direction

ALL


Color Configuration

RGB


LCD Transmittance

Typ: 4.65%; Min: 4.0%


LCD Contrast Ratio

Typ: 1500;  Min: 1000


FPC Version

Z24008-SF450 V1


Interface

MIPI


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight Arrangement

LED / 4 Parallel


Luminance

-


Weight

-



LCM-Pin Assignments of 2.4 Inch IPS LCD Display 240*320 MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DEF.

1

GND

Ground

2

NC

NC

3

RES

Reset pin (1.8V)

4

ID

ID

5

TE

Tearing effect out pin

6

GND

Ground

7

NC

NC

8

IOVCC (1.8)

I/O POWER SUPPLY (1.8V)

9

VCC (2.8)

POWER SUPPLY (2.8V)

10

GND

Ground

11

NC

NC

12

GND

Ground

13

CLKP

MIPI-DSI CLOCK differential signal input pin

14

CLKN

MIPI-DSI CLOCK differential signal input pin

15

GND

Ground

16

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

17

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

18

GND

Ground

19

LED-A

POWER SUPPLY+ FOR BACKLIGHT

20

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

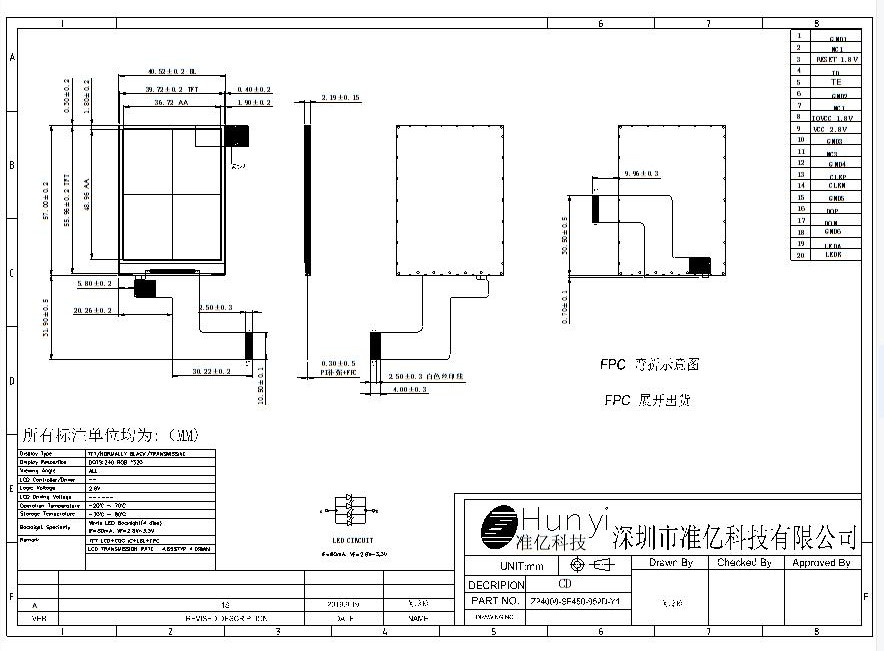

Mechanical Drawing of 2.4 Inch IPS LCD Display 240*320 MIPI Interface


Mechanical Drawing of 2.4 Inch IPS LCD Display 240*320 MIPI Interface
