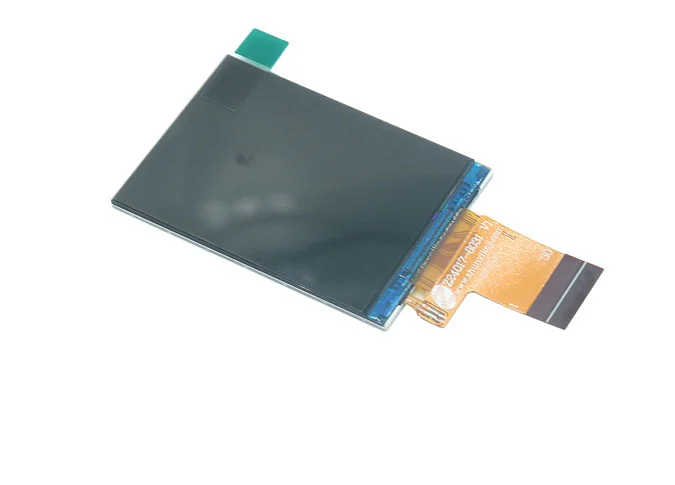

Z24017 2.4 Inch 240*320 TFT LCD Module GC9306N Controller MCU Interface

  • Size: 2.4 inch

  • Resolution: 240*320

  • Interface: MCU

  • Driver IC: GC9306N

  • View Angle: 12 O'clock

  • Brightness: 550 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

2.4 inch 240×320 lcd
2.4 inch 240×320 lcd
2.4 inch 240×320 lcd module
2.4 inch 240×320 lcd module wholesale
2.4 inch 240×320 lcd wholesale
2.4 inch display manufacturer
2.4 inch display wholesale
2.4 inch lcd module
2.4 inch tft lcd module wholesale
320x240 lcd display wholesale
320x240 tft wholesale
320x240 lcd wholesale
320x240 tft display wholesale
2.4 inch display
2.4 inch lcd module datasheet wholesale
2.4 inch lcd module manufacturer
320x240 tft display
320x240 lcd display manufacturer
320x240 lcd
320x240 lcd display
2.4 tft spi 240x320 datasheet manufacturer
320x240 lcd manufacturer
320x240 tft display manufacturer
2.4 inch tft lcd module
320x240 tft
2.4 tft spi 240x320 datasheet wholesale
2.4 tft spi 240x320 datasheet
320x240 tft manufacturer

Overview of Z24017 2.4 Inch 240*320 TFT LCD Module GC9306N Controller MCU Interface

1

Z24017 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*320 resolution. This Square TFT  LCD module is built-in GC9306N driver IC. This a-Si TFT LCD module come with MCU interface, 550 cd/m² brightness. 12 o'clock view angle.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, as a custom LCD manufacturer, we can also customize for you.

3

As one of the TFT LCD module manufacturers, Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 2.4 inch LCD screen is medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, infrared thermometer, hematometer, etc.

General Specifications 2.4 Inch 240*320 TFT LCD Module GC9306N Controller MCU Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.4

inch

2

Display Resolution

240 (H) × RGB × 320 (V)

pixels

3

Pixel Pitch

51.3 (H) × 153 (V)

um

4

LCM Outline Dimension

(Without FPC)

40.52 (W) × 57 (H) × 2.4 (T)

mm

5

LCD Outline Dimension

40.52 (W) × 56.46 (H) × 1.0 (T)

mm

6

LCD Active Area

36.72 (W) × 36.72 (H)

mm

7

View Direction (Gray Inversion)

12 o'clock

-

8

Driver IC

GC9306N

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

TN mode

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5% Min: 4.5%

-

13

LCD Contrast Ratio

TBD

-

14

FPC Version

Z24017-8031 V1

-

15

Interface

MCU

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

550

nit

20

Weight

0.011

kg


Interface Definition Description 2.4 Inch 240*320 TFT LCD Module GC9306N Controller MCU Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDA

POWER SUPPLY+ FOR BACKLIGHT

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

GND

Ground

4

VCI

POWER SUPPLY (3.3V)

5

IOVCC

POWER SUPPLY (1.8V)

6

GND

Ground

7-22

B15-B0

DATA BUS

23

GND

Ground

24

RD

Read enable in 8080 MCU parallel interface

25

WR

Read enable in 8080 MCU parallel interface

26

RS

Ground

27

CS

Chip selection signal PIN

28

IM0

When IM0 is 0, 16-bit MCU (B0-B7, B10-B15)

When IM0 is 1, high 8-bit MCU (B10-B15), B0-B7 connected to GND

29

RESET

LCM RESET PIN (1.8V)

30

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.


Mechanical Drawing 2.4 Inch 240*320 TFT LCD Module GC9306N Controller MCU Interface


Mechanical Drawing 2.4 inch 240*320 TFT LCD Module GC9306N Controller MCU Interface
