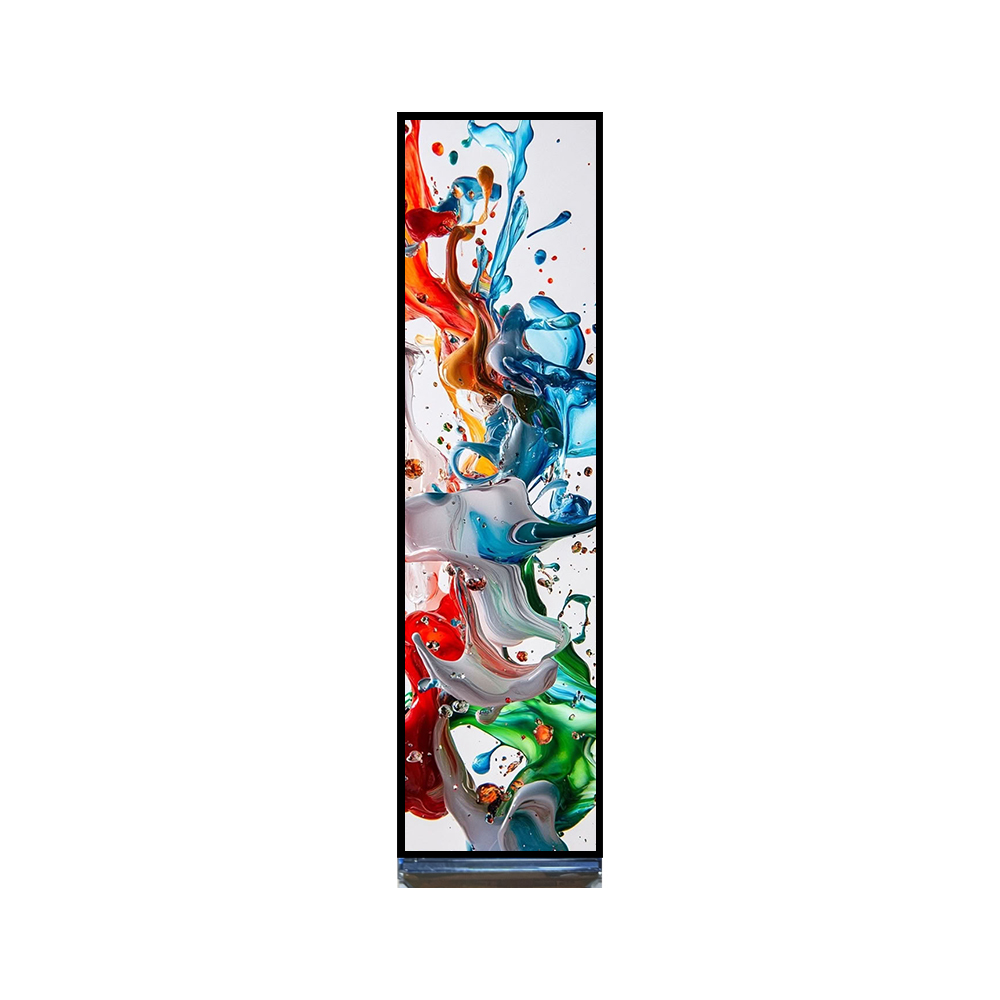

Z39901 3.99 Inch Bar LCD Display SPI+RGB Interface 400*960 ST7701S Controller

  • Size: 3.99 inch

  • Resolution: 400*960

  • Interface: SPI+RGB

  • Driver IC: ST7701S

  • View Angle: IPS

  • Brightness: 350nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

custom tft display
custom tft display
custom lcd display
custom lcd display manufacturer
custom lcd display manufacturer china
custom lcd display module

Overview of Z39901 3.99 Inch Bar LCD Display SPI+RGB Interface 400*960 ST7701S Controller

1

Z39901 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 400*960 resolution. IPS (In-plane Switching) technique make this 3.99" LCD module have a wider view angle. This wholesale LCD display is built-in ST7701S driver IC. This a-Si TFT LCD module come with SPI+RGB interface, 350 cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, color, backlight, etc, we can also provide custom LCD display module for you.

3

Our display module factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3.99 inch bar type LCD display is smart home appliance, coffee machine, medical, industry, aircraft, vehicle, audio device, digital scale, etc.

General Specifications 3.99 Inch Bar LCD Display SPI+RGB Interface 400*960 ST7701S Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.99

inch

2

Display Resolution

400 (H) × RGB × 960 (V)

pixels

3

Pixel Pitch

32.65 x 97.95

um

4

LCM Outline Dimension

(Without FPC)

42.9 × 102.08 × 2.25

mm

5

LCD Active Area

39.18 × 94.032

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7701S

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

/

-

13

FPC Version

Z39901-V1

-

14

Interface

SPI+RGB

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED 8

-

18

Luminance

350

nit

19

Weight

/

kg
