Z40032 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory

  • Size: 4 inch

  • Resolution: 480*800

  • Interface: SPI+RGB

  • View Angle: IPS

  • Brightness: 300 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote

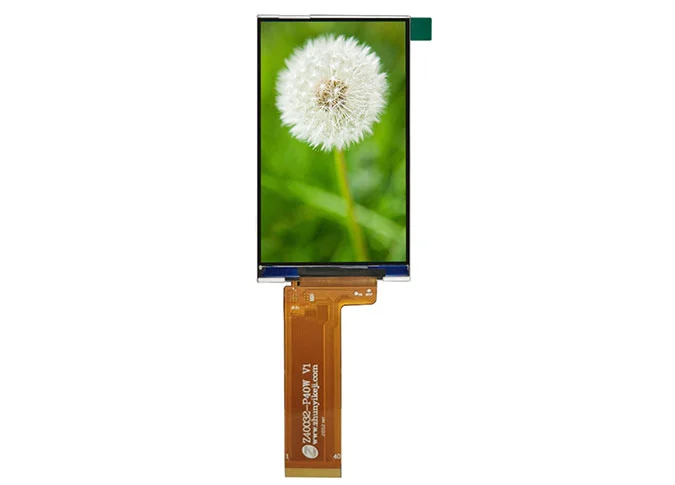

4 inch tft display
4 inch tft display
lcd 4 inch

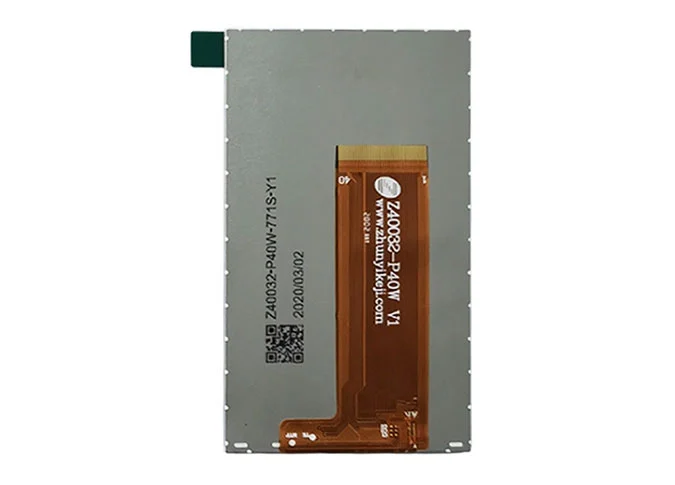

4 inch lcd panel
tft display 4 inch
lcd 800x480
tft 800x480
4 inch tft screen

Overview of Z40032 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory

1

Z40032 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*800 resolution. IPS (In-plane Switching) technique make this 4" LCD module have a wider view angle. This Square TFT  LCD module is built-in ST7701S driver IC. This a-Si TFT LCD module come with SPI+RGB interface, 300 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a custom LCD manufacturer, we can also customize for you.

3

As one of the TFT LCD module manufacturers, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 4 inch LCD screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, smart home, industry handheld, outdoor, HMI, etc.

Specifications of 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory


Item

Main Display

Unit

Number of Pixels

480 * RGB * 800

Pixel

LCM Outline Dimension

55.44 (W) * 96.15 (H) * 1.71 (T)

mm

LCD Outline Dimension

54.74 (W) * 93.35 (H) * 0.4 (T)

mm

Active Area

51.84 * 86.4

mm

Pixel Pitch

108 *108

um

Display Mode

Normal Black


Pixel Arrangement

R.G.B. Vertical Stripe


Viewing Direction

Free


Color Configuration

RGB


LCD Transmittance

Typ: 4.03%; Min: 3.4%


LCD Contrast Ratio

Typ: 800; Min: 600


FPC Version

Z40032-P40W V1


Interface

RGB+SPI


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 8 parallel


Luminance

-


Weight

-



LCM-Pin Assignments of 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LED-A

POWER SUPPLY+ FOR BACKLIGHT ANODE

3

GND

Ground

4

VCI

POWER SUPPLY (3.3V）

5-12

R0-R7

Data bus

13-20

G0-G7

Data bus

21-28

B0-B7

Data bus

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

NC

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable signal in RGB I/F DE mode.

35

NC

NC

36

GND

Ground

37

RESET

Reset Signal pin (3.3V）

38

CS

Chip Select input pin. (Active Low)

39

SCL

A synchronous clock signal in SPI I/F

40

SDI

Serial input signal in SPI I/F

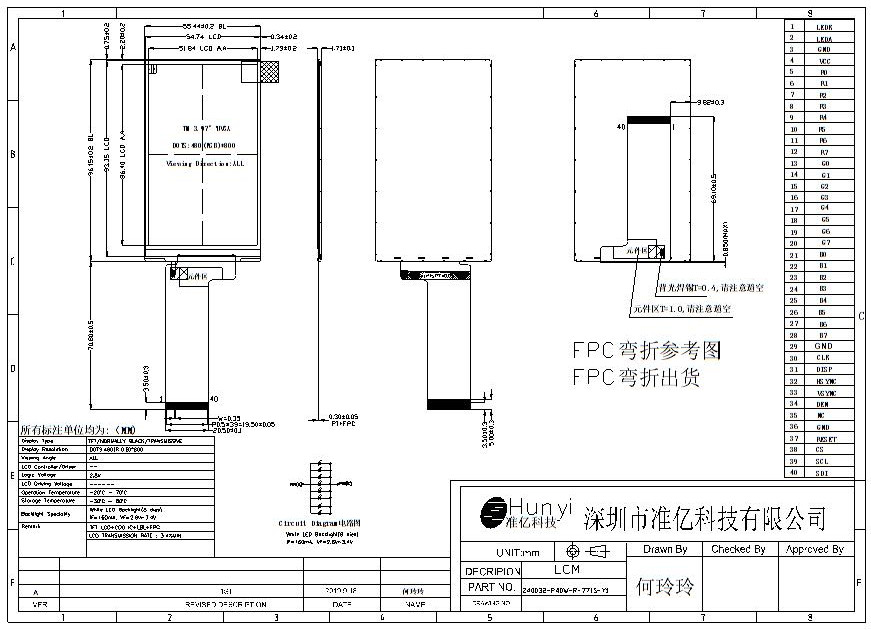

Mechanical Drawing of 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory


Mechanical Drawing of 4 Inch 480*800 TFT Display SPI+RGB Interface 40PIN LCD Screen Factory
