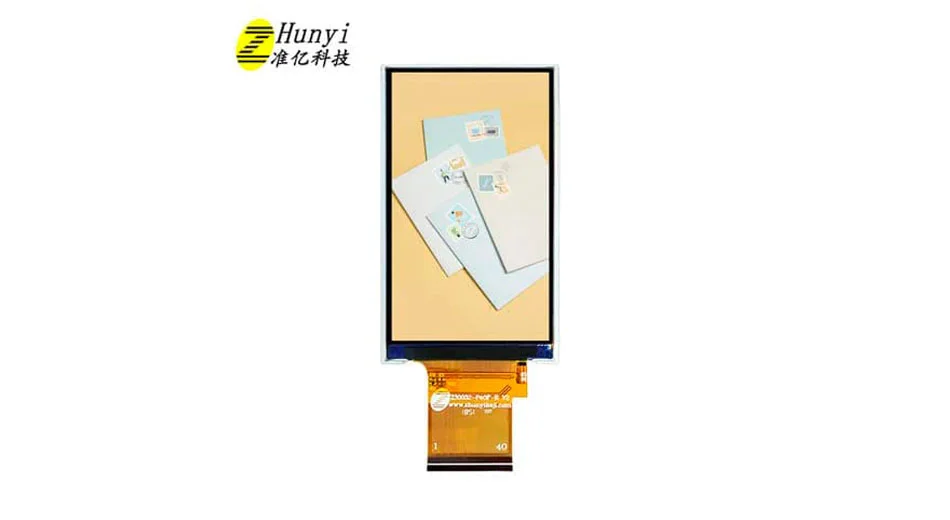

Z40045 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface

  • Size: 4 inch

  • Resolution: 480*800

  • Active Area: 51.84*86.40mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 320 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
4 inch lcd monitor
4 inch lcd monitor
lcd monitor 4 inch
480x800 lcd
480x800 tft
4 inch lcd
4 inch lcd monitor wholesale
lcd monitor 4 inch wholesale
480x800 lcd wholesale
480x800 tft wholesale
4 inch lcd wholesale
4 inch lcd monitor manufacturer
lcd monitor 4 inch manufacturer
480x800 lcd manufacturer
480x800 tft manufacturer
4 inch lcd bulk

Overview of Z40045 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface

1

Z40045 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*800 resolution. IPS (In-plane Switching) technique make this 4" LCD module have a wider view angle. This LCD display is built-in ST7701S driver IC. This a-Si TFT LCD amoled module come with MIPI interface, 320 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can provide custom LCD module for you.

3

As one of the professional China LCD manufacturers, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 4 inch LCD screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, smart home, industry handheld, outdoor, HMI, etc.

Specifications of 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.0

inch

2

Display Resolution

480 (H) × RGB × 800 (V）

pixels

3

Pixel Pitch

108 (H) × 108 (V）

um

4

LCM Outline Dimension

(Without FPC）

55.44 (W) × 96.15 (H) ×1.71 (T)

mm

5

LCD Outline Dimension

54.74 (W) × 9335 (H) × 0.4 (T)

mm

6

LCD Active Area

51.84 (W) × 86.40 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.03% Min: 3.4%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 600

-

14

FPC Version

Z40045-P40W-M V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 8 Parallel (8 lights in total)

-

19

Luminance

320

nit

20

Weight

0.018

kg



Interface Definition Description of 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

TDP0

Positive MIPI differential data input

3

TDN0

Negative MIPI differential data input

4

GND

Ground

5

TDP1

Positive MIPI differential data input

6

TDN1

Negative MIPI differential data input

7

GND

Ground

8

TCP

Positive MIPI differential CLOCK input

9

TCN

Negative MIPI differential CLOCK input

10

GND

Ground

11

TDP2(NC)

Positive MIPI differential data input (No Connection)

12

TDN2(NC)

Negative MIPI differential data input (No Connection)

13

GND

Ground

14

TDP3(NC)

Positive MIPI differential data input (No Connection)

15

TDN3(NC)

Negative MIPI differential data input (No Connection)

16-17

GND

Ground

18-23

NC

No Connection

24

RESET

LCM RESET PIN

25-26

NC

No Connection

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

No Connection

32-33

GND

Ground

34

NC

No Connection

35-36

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

37

GND

Ground

38-39

VCC

POWER SUPPLY (2.8V）

40

NC

No Connection


Mechanical Drawing of 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface


Mechanical Drawing of 4 Inch IPS LCD 480*800 Display Screen JD9161Z IC Full View MIPI Interface
