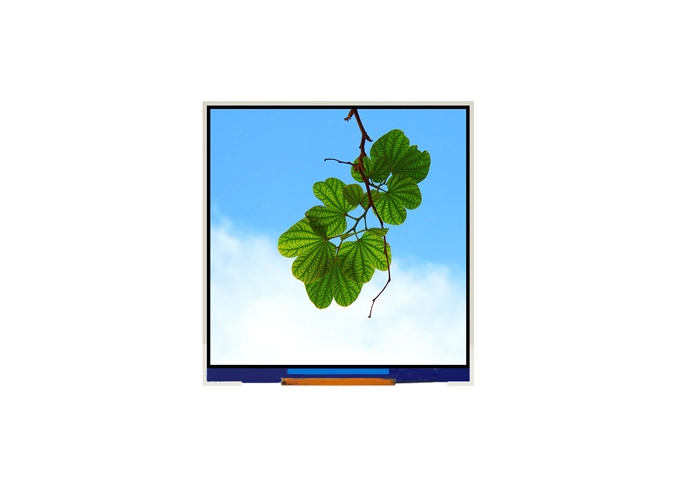

Z40053 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface

  • Size: 4 inch

  • Resolution: 480*480

  • Active Area: 71.856*70.176mm

  • Interface: MIPI/SPI+RGB

  • View Angle: IPS

  • Brightness: 400 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

which is better tft or ips lcd
which is better tft or ips lcd
ips vs tn display which is better
which is best tft or ips lcd
ips or tn screen which is better
what is the difference between tft and ips display
ips lcd vs tn which is better
ips lcd vs tn lcd which is better
4 tft lcd
4 tft lcd display
ips lcd or tn which is better
4 inch 480 800 tft lcd
which is better tft or ips
ips or tn which is better
which display is best tft or ips lcd
ips or tn display which is better
4 inch spi lcd
4 tft display
ips lcd vs tn display which is better
ips lcd vs tn display
tft lcd display 4 inch
ips display vs tn lcd
ips and tn display difference
display type tn vs ips lcd
difference between tn and ips
difference between ips and tn display

Overview of Z40048 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface

1

Z40046 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*800 resolution. IPS (In-plane Switching) technique make this 4" LCD module have a wider view angle. This Chinese LCD display screen is built-in JD9161Z-JN driver IC. This a-Si TFT LCD module come with MIPI interface, 400 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can provide China custom LCD display for you.

3

As a square LCD screen factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 4 inch LCD screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, smart home, industry handheld, outdoor, HMI, etc.

Specifications of Z40053 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface


Item

Main Display

Unit

Number of Pixels

480 * RGB * 480

Pixel

LCM Outline Dimension

74.83 (W) * 78.98 (H) * 2.12 (T)

mm

LCD Outline Dimension

74.26 (W) * 76.18 (H) * 0.8 (T)

mm

Active Area

71.86 * 70.18

mm

Pixel Pitch

0.1479 * 0.1462

um

Display Mode

Normally Black


Pixel Arrangement

RGB vertical stripe


Viewing Direction

Free


Color Configuration

RGB


LCD Transmittance

Typ: 4.2%


LCD Contrast Ratio

Typ: 800; Min: 640


FPC Version

Z40041-P40 V1


Interface

MIPI


Operating Temperature

-30℃ ~ 85℃


Storage Temperature

-40℃ ~ 90℃


Backlight arrangement

LED /2 series 5parallel


Luminance

-


Weight

-



LCM-Pin Assignments of Z40053 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface


PIN NO.

PIN DEF.

PIN DESC.

1

GND

Ground

2

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

3

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

4

GND

Ground

5

D1P

MIPI-DSI Data differential signal input pins. (Data lane 1)

6

D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

7

GND

Ground

8

CLKP

MIPI-DSI CLOCK differential signal input pin

9

CLKN

MIPI-DSI CLOCK differential signal input pin

10

GND

Ground

11

NC

NC

12

NC

NC

13

GND

Ground

14

NC

NC

15

NC

NC

16

GND

Ground

17

GND

Ground

18

IOVCC

I/O POWER SUPPLY (1.8V)

19

IOVCC

I/O POWER SUPPLY (1.8V)

20

ID0

LCM ID

21

ID1

LCM ID

22

NC

NC

23

NC

NC

24

RES

Reset pin (1.8V)

25

NC

NC

26

NC

NC

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

NC

32

GND

Ground

33

GND

Ground

34

NC

NC

35-36

LEDA

POWER SUPPLY+ FOR BACKLIGHT

37

GND

Ground

38

VCC

POWER SUPPLY (3.3V)

39

VCC

POWER SUPPLY (3.3V)

40

NC

NC


Mechanical Drawing of Z40053 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface


Mechanical Drawing of Z40048 4 Inch TFT LCD Display QVGA 480*800 MIPI/SPI+RGB Interface
