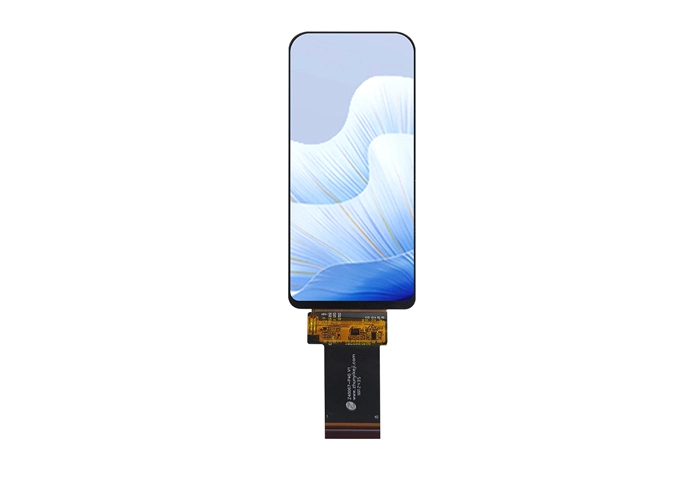

Z40067 4 inch Incell LCD Module MIPI Interface 480x1080 Pixels Stretched Bar Display

1

Display Size (Diagonal)

4.0

inch

2

Display Resolution

480（H）× RGB × 1080（V）

pixels

3

Pixel Pitch

87.5（H）× 87.5（V）

um

4

LCM Outline Dimension

(Without FPC）

44.1（W）×100.9（H）×1.97（T）

mm

5

LCD Active Area

42（W）×94.5（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

HI8561N

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

FPC Version

Z40067-P40-V1

-

11

Interface

MIPI

-

12

Sensor Interface

I 2C&SPI

13

Multi touch

(10)

Point

14

Report Rate

(180)(Compatible 120)

HZ

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

18

Display+Touch  Luminance

Typ.: 400

nit

19

Weight

TBD

kg

1

GND

Ground

2

TDP0

Positive MIPI differential data input

3

TDN0

Negative MIPI differential data input

4

GND

Ground

5

TDP1

Positive MIPI differential data input

6

TDN1

Negative MIPI differential data input

7

GND

Ground

8

TCP

Positive MIPI differential CLOCK input

9

TCN

Negative MIPI differential CLOCK input

10

GND

Ground

11

TDP2

Positive MIPI differential data input

12

TDN2

Negative MIPI differential data input

13

GND

Ground

14

NC

No Connection

15

NC

No Connection

16

GND

Ground

17

GND

Ground

18

TP-SCL(1.8V)

TP  I2C clock (SCL) clock (SCLK)

19

TP-SDA(1.8V)

TP  I2C data (SDA) data input (MOSI)

20

TP-INT(1.8V)

TP-INT(1.8V)

21

GND

Ground

22

NC

No Connection

23

TP-RESET(1.8V)

TP  Reset  PIN

24

GND

Ground

25

NC

No Connection

26

NC

No Connection

27

GND

Ground

28

ID1

LCM ID PIN

29

ID2

LCM ID PIN

30

TE

Tearing Effect PIN

31

RESET

LCM RESET PIN

32

GND

Ground

33

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

34

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

35

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

36

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

37

IOVCC 1.8V

I/O POWER SUPPLY

38

VCC 2.8V

POWER SUPPLY

39

NC(VSN -5V)

No Connection (POWER SUPPLY)  Customer optiona

40

NC(VSP +5V)

No Connection (POWER SUPPLY)  Customer optiona

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

Sensor Interface  I₂C&SPI  Customer optiona
