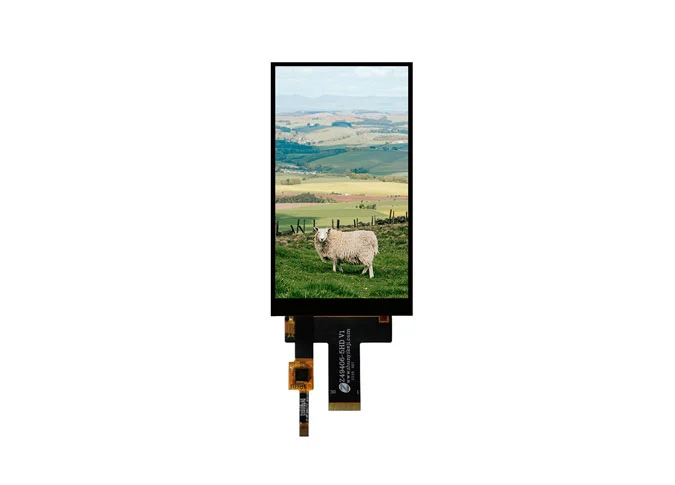

Z49406-ZC 5 Inch LCD Screen 720*1280 With Capactitive Touch Panel MIPI/I2C 380nits

  • Size: 4.9 inch

  • Resolution: 720*1280

  • LCD Interface: MIPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: NT35521SH

  • Touch Controller: GT911

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
lcd capacitive touch
lcd capacitive touch
lcd capacitive screen
custom capacitive touch panel
surface capacitive touch screen
tft capacitive touchscreen price
buy capacitive touch screen panel
tft capacitive
tft capacitive touch screen
ips capacitive touchscreen factories
5 inch touch panel
5 inch capacitive touch panel
5 inch capacitive touch lcd
5 touch panel
5 720x1280 touch panel
5 720x1280 capacitive touch
multi point touch panel
multi point touch screen
capacitive tft lcd display
capacitive touch panel
capacitive touch screen
multi point touch display
multi point capacitive touch panel
multi point capacitive touch screen
capacitive tft lcd
capacitive tft display
capacitive tft lcd panel
capacitive tft lcd screen
capacitive lcd screen
capacitive lcd panel
capacitive tft screen
capacitive tft panel
capacitive tft module
capacitive screen
capacitive tft lcd module
tft vs capacitive

Overview of Z49406-ZC 5 Inch LCD Screen 720*1280 With Capactitive Touch Panel MIPI/I2C 380nits

1

Z49406-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 720*1280. This TFT touch square LCD panel is built-in NT35521SH LCD driver IC and GT911 touch controller. This a-Si TFT LCD touch module come with MIPI and I2C interface. Multi-point touch.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, we can provide China custom LCD display for you.

3

As one of the wholesale touch screen factories, Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 4.9 inch LCD touch screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry handheld, outdoor, HMI, E-bike, electric vehicle, dashboard, speedometer, etc.
