Z49420-ZC Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C

  • Size: 4.9 inch

  • Resolution: 720*1280

  • LCD Interface: MIPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: GH1001

  • Touch Controller: GT911

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

5 720 1280 touch screen
5 720 1280 touch screen
capacitive touch screen price
5 inch capacitive touch screen
capacitive tft
tft 5 inch touch screen
capacitive lcd
5 inch tft touch screen
tft capacitive screen
lcd capacitive touchscreen
capacitive touchscreen lcd
capacitive touch tft
5 touch screen
capacitive touch lcd
5 inch tft touch display
capacitive lcd display
5 inch ips touch screen
tft capacitive touch
tft lcd capacitive touchscreen
raspberry capacitive touch screen
capacitive touchscreen display
capacitive touch screen panel
capacitive display
5 verfical touch sceen

Overview of Z49420-ZC Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C

1

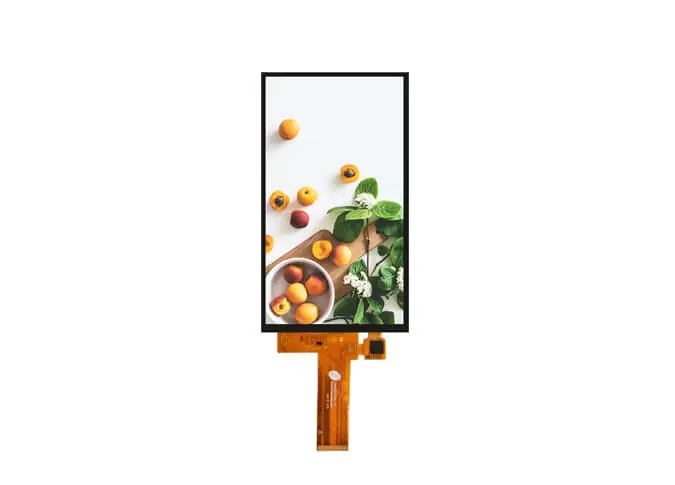

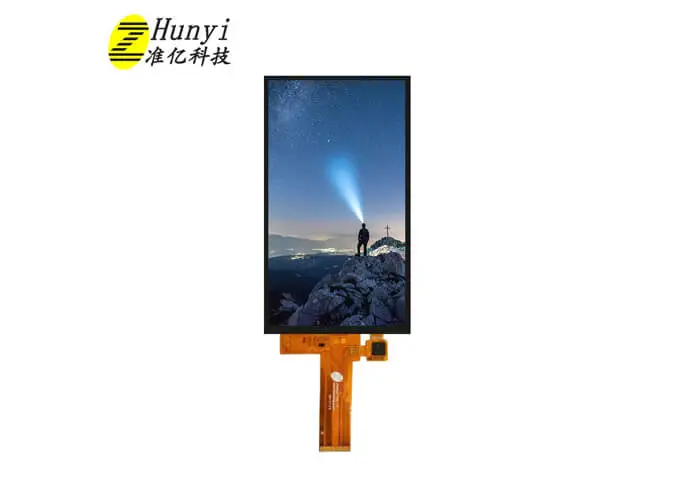

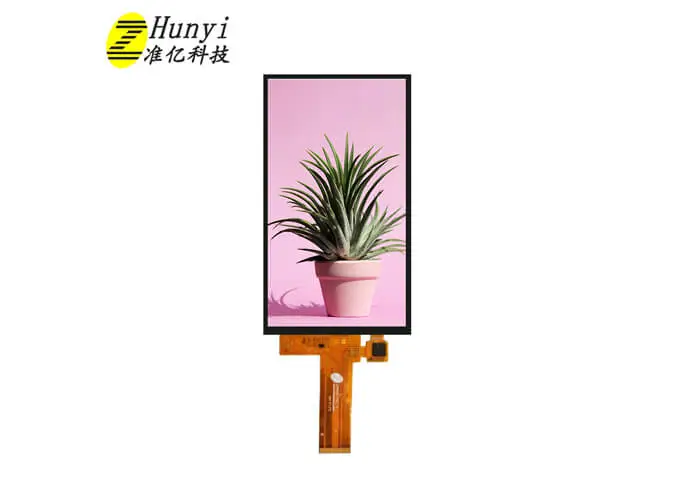

Z49420-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 720*1280. This TFT touch square TFT  LCD display is built-in GH1001 LCD driver IC and GT911 touch controller. This a-Si TFT LCD touch module come with MIPI and I2C interface. Multi-point touch.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, we can provide customized TFT LCD for you.

3

As one of the wholesale touch screen factories, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

This 4.9 inch LCD touch screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry handheld, outdoor, HMI, E-bike, electric vehicle, dashboard, speedometer, etc.

General Specifications Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.9

inch

2

Display Resolution

720 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

29.5 (H) × 88.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

65.89 (W) × 119.91 (H) × 1.65 (T)

mm

5

LCD Outline Dimension

65.692 (W) × 119.608 (H) × 0.4 (T)

mm

6

TLCM Outline Dimension

(Without FPC)

69.74 (W) × 125.53 (H) × 3.18 (T)

mm

7

LCD Active Area

63.72 (W) × 113.28 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

GH1001

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 3.2% Min: 2.72%

-

14

LCD Contrast Ratio

Typ.: 1200 Min: 1000

-

15

FPC Version

Z49420-P30H V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 2 Parallel (10 lights in total)

-

20

Luminance

320

nit

21

Weight

0.053

kg


Interface Definition Description Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C


2.1 LCM PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

VDD_5V

POWER SUPPLY (5V)

2

VDD_LCD

POWER SUPPLY

3

LCD_BL_PWM

Connecting with the external BL driver

4

LCD_RST

LCM RESET PIN

5

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

6

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

7

TOUCH_RST_L

TP RESET PIN

8

TOUCH_INT_H

TP Interrupt PIN

9

VCC3V0_TOUCH

TP POWER SUPPLY (3V)

10

GND

Ground

11

I2C4_SCL

TP I2C clock (SCL) clock (SCLK)

12

I2C4_SDA

TP I2C data (SDA) data input (MOSI)

13-14

NC

No Connection

15-17

GND

Ground

18

LCD_EN

LCM Data enable signal

19

CLKP

Positive MIPI differential CLOCK input

20

CLKN

Negative MIPI differential CLOCK input

21

DSI_D0P

Positive MIPI differential data input

22

DSI_D0N

Negative MIPI differential data input

23

DSI_D1P

Positive MIPI differential data input

24

DSI_D1N

Negative MIPI differential data input

25-26

NC

No Connection

27

DSI_D2P

Positive MIPI differential data input

28

DSI_D2N

Negative MIPI differential data input

29

DSI_D3P

Positive MIPI differential data input

30

DSI_D3N

Negative MIPI differential data input

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

TOUCH_RST_L

TP RESET PIN

2

TOUCH_INT_H

TP Interrupt PIN

3

VCC3V0_TOUCH

TP POWER SUPPLY (3V)

4

GND

Ground

5

I2C4_SCL

TP I2C clock (SCL) clock (SCLK)

6

I2C4_SDA

TP I2C data (SDA) data input (MOSI)


Mechanical Drawing Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C


3.1 LCM


Mechanical Drawing Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C


3.2 TLCM


Mechanical Drawing Vertical Touch Screen 5 Inch 720*1280 TFT Display 30PIN MIPI I2C
