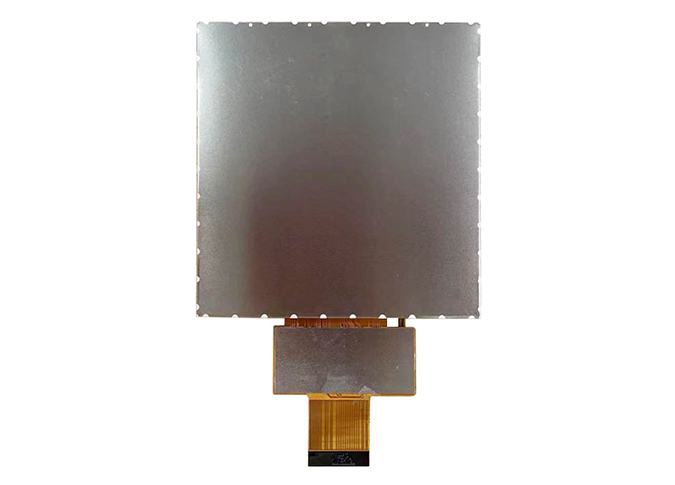

Z50075 High Brightness 5 inch Square Display 600x600 Resolution MIPI Interface OTA7290B Controller

LCD Size

4.97

inch

Number of Pixels

600 (H) RGB x 600 (V)

pixels

Display Mode

Normally Black

-

Viewing Direction

Free

o ’ clock

Interface

MIPI

-

Display Colors

16.7M

colors

Outline Dimension

95.08 (H) x 99.50 (V) x 2.70 (D)

mm

Active Area

89.28 (H) x 89.28 (V)

mm

Pixel Pitch

0. 1488 (H) x 0. 1488 (V)

mm

Driver IC

OTA7290B

-

Operation Temperature

-20~70

℃

Storage Temperature

-30~80

℃

1

NC

No connection

2

VDD

Power supply

3

NC

No connection

4

GND

Ground

5

RESET

Global reset pin

6

NC

No connection

7

GND

Ground

8

MIPI_0N

MIPI Negative data signal(-)

9

MIPI_0P

MIPI Positive data signal(+ )

10

GND

Ground

11

MIPI_1N

MIPI Negative data signal(-)

12

MIPI_1P

MIPI Positive data signal(+ )

13

GND

Ground

14

MIPI_CKN

MIPI Negative clock signal(-)

15

MIPI_CKP

MIPI Positive clock signal(+)

16

GND

Ground

17

MIPI_2N

MIPI Negative data signal(-)

18

MIPI_2P

MIPI Positive data signal(+ )

19

GND

Ground

20

MIPI_3N

MIPI Negative data signal(-)

21

MIPI_3P

MIPI Positive data signal(+ )

22

GND

Ground

23-24

NC

No connection

25

GND

Ground

26

ID

LCM_ID

27

NC

No connection

28

GND

Ground

29-30

LED-

Power for LED backlight (Cathode)

31

NC

No connection

32-33

LED+

Power for LED backlight (Anode)

34

TP_SCL(NC)

No connection

35

TP_SDA(NC)

No connection

36

TP_INT(NC)

No connection

37

TP_RST(NC)

No connection

38

TP_VCC(NC)

No connection

39

TP_GND(NC)

No connection

40

GND

Ground
