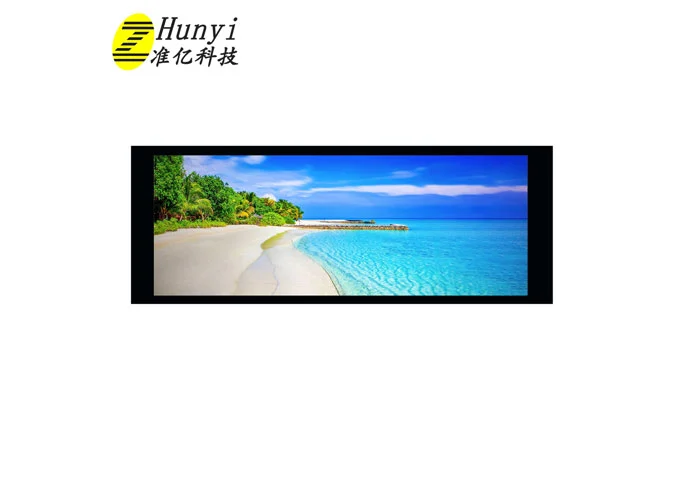

Z686006 6.86 Inch 480*1280 TFT LCD Screen Bar Stype MIPI Interface

  • Size: 6.86 inch

  • Resolution: 480*1280

  • Active Area: 60.22*160.59 mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
lcd square
lcd square
square lcd
square lcd display
square lcd panel
square lcd screen
square tft display
square tft
bar type lcd display
bar type lcd
bar type display
square lcd screens
square lcd module
square screen
bar type tft
tft bar
bar lcd panel
bar tft
bar type tft lcd
stretched bar lcd display
6 86 inch bar display
6 86 inch bar lcd
6 86 inch tft lcd bar
6 86 inch bar screen
6 86 inch tft lcd screen
6 86 inch tft screen

Overview of Z686006 6.86 Inch 480*1280 TFT LCD Screen Bar Stype MIPI Interface

1

Z686006 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*1280 resolution. IPS (In-plane Switching) technique make this 6.86" LCD module have a wider view angle. This bar type TFT LCD is built-in  HICNL9707 driver IC. This a-Si TFT LCD module come with MIPI interface, 500cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight etc, we also provide custom LCD modules.

3

 Our China LCD screen factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 6.86 inch LCD screen is widely used in Medical, visual doorbell, game player, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot etc.

Specifications of Z686006 6.86 Inch 480*1280 TFT LCD Screen Bar Stype MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.86

inch

2

Display Resolution

480 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

41.8 (H) × 125.4 (V）

um

4

LCM Outline Dimension

(Without FPC）

171.79 (W) × 65.72 (H) × 2.6 (T)

mm

5

LCD Outline Dimension

169.01 (W) × 63.39 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

-

mm

7

LCD Active Area

160.51 (W) × 60.19 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ICNL9707

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.4% Min: 3.74%

-

14

LCD Contrast Ratio

Typ.: 1500 Min: 1000

-

15

FPC Version

Z686006-NZ01-I977-Y1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/4 Series 4 Parallel (16 lights in total)

-

20

Luminance

400

nit

21

Weight

0.105

kg


Interface Definition Description of Z686006 6.86 Inch 480*1280 TFT LCD Screen Bar Stype MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

VCC

POWER SUPPLY (3.3V）

3

IOVCC

I/O POWER SUPPLY (1.8V）

4

GND

Ground

5

RESET

LCM RESET PIN

6

IOVCC

I/O POWER SUPPLY (1.8V）

7

NC

No Connection

8

ID2

LCM ID PIN

9

ID1

LCM ID PIN

10-15

NC

No Connection

16

GND

Ground

17

D3N

Negative MIPI differential data input

18

D3P

Positive MIPI differential data input

19

GND

Ground

20

D2N

Negative MIPI differential data input

21

D2P

Positive MIPI differential data input

22

GND

Ground

23

CLKN

Negative MIPI differential CLOCK input

24

CLKP

Positive MIPI differential CLOCK input

25

GND

Ground

26

D1N

Negative MIPI differential data input

27

D1P

Positive MIPI differential data input

28

GND

Ground

29

D0N

Negative MIPI differential data input

30

D0P

Positive MIPI differential data input

31-32

GND

Ground

33-36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

37

NC

No Connection

38-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
