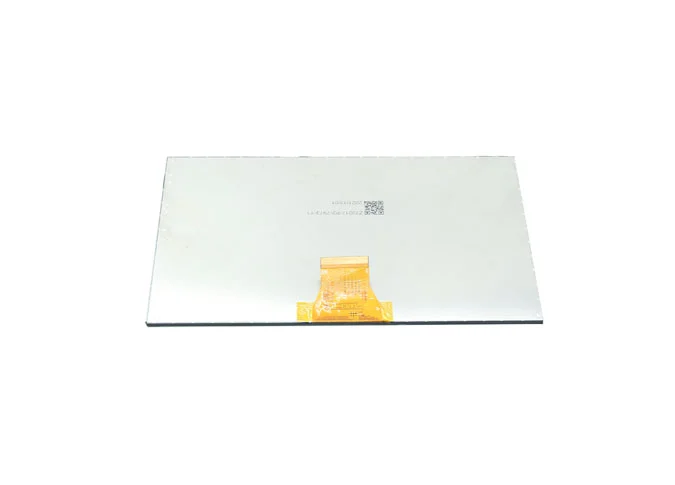

Z70041 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface

  • Size: 7 inch

  • Resolution: 1024*600

  • Interface: RGB

  • Driver IC: EK79001HE+EK73215BCGA

  • View Angle: 12 o'clock

  • Brightness: 300 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
lvds tft display
lvds tft display
7 inch tft
lvds lcd
lvds screen
lvds tft

Overview of Z70041 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface

1

Z70041 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1024*600 resolution. This a-Si TFT LCD square IPS LCD panel come with RGB interface, 300cd/m² brightness.12 o'clock view angle.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc, we can provide custom shaped LCD display for you.

3

As a square LCD screen manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The horizontal 7 inch LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, elevator advertising, etc.

General Specifications 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface


Item

Main Display

Unit

Number of Pixels

1024 * RGB * 600

Pixel

LCM Outline Dimension

163.70 (W) * 96.9 (H) * 2.6 (T)

mm

LCD Outline Dimension

162.20 (W) * 95.70 (H) * 1.0 (T)

mm

Active Area

154.21 (W) * 85.92 (H)

mm

Pixel Pitch

0.0502 (W) * 0.1432 (H)

mm

Display Mode

Normally White


Pixel Arrangement

RGB vertical stripe


Viewing Direction

12 o'clock


Color Configuration

RGB


LCD Transmittance

Typ: 4.2%; Min: 3.9%


LCD Contrast Ratio

Typ: 800; Min: 600


FPC Version

Z70041-VIDE0 V2


Interface

LVDS


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 3 series 8 parallel


Luminance

-


Weight

-



LCM-Pin Assignments 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface


PIN NO.

PIN DEF

FUNCTION DESC.

1

VCOM

Common Voltage (3.15V)

2-3

VDD

POWER SUPPLY (3.3V）

4

NC

NC

5

RES

Reset pin (3.3V）

6

STBYB

Standby mode, normally pull high

STBYB= "1", normal operation

STBYB= "0", timing control, source driver will turn off, all output are

high-Z

7

GND

Ground

8

D0-N

MIPI-DSI Data differential signal input pins. (Data lane 0)

9

D0-P

MIPI-DSI Data differential signal input pins. (Data lane 0)

10

GND

Ground

11

D1-N

MIPI-DSI Data differential signal input pins. (Data lane 1)

12

D1-P

MIPI-DSI Data differential signal input pins. (Data lane 1)

13

GND

Ground

14

D2-N

MIPI-DSI Data differential signal input pins. (Data lane 2)

15

D2-P

MIPI-DSI Data differential signal input pins. (Data lane 2)

16

GND

Ground

17

CLK-N

MIPI-DSI CLOCK differential signal input pin

18

CLK-P

MIPI-DSI CLOCK differential signal input pin

19

GND

Ground

20

D3-N

MIPI-DSI Data differential signal input pins. (Data lane 3)

21

D3-P

MIPI-DSI Data differential signal input pins. (Data lane 3)

22

GND

Ground

23-24

NC

NC

25

GND

Ground

26-27

NC

NC

28

HSD

In LVDS interface connected HSD to FPC for pin setting

HSD= "L": 8 bit

HSD= "H": 6 bit

29

AVDD

Power for Analog Circuit (9.6V)

30

GND

Ground

31-32

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

33

L/R

SHLR

34

U/D

UPDN

35

VGL

Gate OFF Voltage (-6V)

36-37

NC

NC

38

VGH

Gate ON Voltage (18V)

39-40

LED-A

POWER SUPPLY+ FOR BACKLIGHT


Mechanical Drawing 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface


Mechanical Drawing 7 Inch 1024*600 IPS Display Module 12 O'clock LVDS Interface
