Z70088 High Brightness 1000 nits IPS View Angle 7 inch TFT LCD Screen 800*1280

  • Resolution:800*1280

  • Interface: MIPI

  • View Angle: IPS

  • Brightness:1000nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

Request A Quote

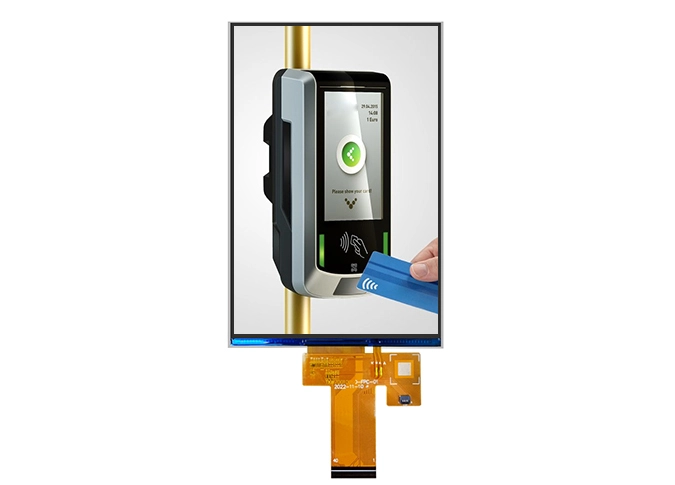

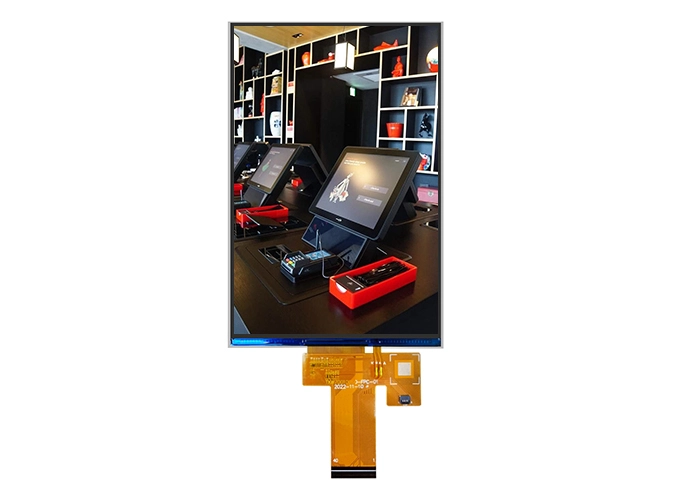

z70088 1
z70088 1
z70088 2
z70088 3
z70088 4
z70088 6
z70088 5

Overview of Z70088 High Brightness 1000 nits IPS View Angle 7 inch TFT LCD Screen 800*1280

1

Z70088 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*1280 resolution. IPS(In-plane Switching) technique make this 7" LCD module have a wider view angle.This LCD display is built-in ILI9881C driver IC.This a-Si TFT LCD come with MIPI interface.With high brightness 1000 nits.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, as a TFT LCD module supplier, we can also customize for you.

3

As a square LCD supplier, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 7" LCD wholesale TFT Screen is widely used on Automotive, Viusal doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, consumer electronics,3D printer, E-readers, Advertising, Vending, Education ect

General Specifications of Z70088 High Brightness 1000 nits IPS View Angle 7 inch TFT LCD Screen 800*1280


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

0. 11775(H）× 0. 11775（V）

mm

4

LCM Outline Dimension

(Without FPC）

99.65(W) ×160.85(H) ×2.40(T)

mm

5

LCD Active Area

94.20(H) x 150.72(V)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ILI9881C

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

/

-

13

FPC Version

Z70088  V1

-

14

Interface

MIPI

-

15

Operating Temperature

-30°C~ 85°C

-

16

Storage Temperature

-40°C~ 90°C

-

17

Backlight Arrangement

LED/5 Series 4 Parallel (20 lights in total)

-

18

Luminance

1000

nit

19

Weight

TBD

kg


Interface Definition Description of Z70088 High Brightness 1000 nits IPS View Angle 7 inch TFT LCD Screen 800*1280


Pin No.

Symbol

LCM Functional

Notes

1~2

GND

Power Ground


3

CTP_RST 1.8V

Touch panel reset


4

LCD-RESET

Reset pin. Setting either pin low initializes the LSI


5

CTP_INT 1.8V

Touch panel interrupt output


6

TE

Frame head pulse for tearing effect.


7

CTP_SDA 1.8V

Touch panel I2C data


8

LCD-ID

ID read PIN for ID circuit.


9

CTP_SCL 1.8V

Touch panel I2C clock


10

GND

Power Ground


11

CTP_VCC 2.8V 3.3V

Touch panel Power supply 2.8~3.3V


12

MIPI_D0-

MIPI-DSI Data differential signal input pins


13

GND

Power Ground


14

MIPI_D0+

MIPI-DSI Data differential signal input pins


15

LEDA

Power supply for backlight anode input terminal.


16

GND

Power Ground


17

LEDA

Power supply for backlight anode input terminal.


18

MIPI_D1-

MIPI-DSI Data differential signal input pins


19

GND

Power Ground


20

MIPI_D1+

MIPI-DSI Data differential signal input pins


21

LEDK

Power supply for backlight cathode input terminal.


22

GND

Power Ground


23

LEDK

Power supply for backlight cathode input terminal.


24

MIPI_CLK-

MIPI-DSI CLOCK differential signal input pins


25

LEDK

Power supply for backlight cathode input terminal.


26

MIPI_CLK+

MIPI-DSI CLOCK differential signal input pins


27~28

GND

Power Ground


29

PWM

PWM (Pulse Width Modulation) Signal Of LED Driving.


30

MIPI_D2-

MIPI-DSI Data differential signal input pins


31

LCD-VDDIO 1.8V

power supply for the I/O circuit


32

MIPI_D2+

MIPI-DSI Data differential signal input pins


33~34

GND

Power Ground


35

VSP

External input voltage  (4.8V~6V)


36

MIPI_D3-

MIPI-DSI Data differential signal input pins


37

VSN

External input voltage  (-4.8V~-6V)


38

MIPI_D3+

MIPI-DSI Data differential signal input pins


39~40

GND

Power Ground
