Z70101-ZC1 Full HD 7 Inch 1200x1920 LCD Screen Capacitive Touch Panel GT9271 Controller MIPI I2C Interface

  • Size: 7"

  • Resolution: 1200*1920

  • LCD Interface: MIPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC:HX8279-D01

  • Touch Controller: GT9271

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

Request A Quote
z70101 zc1 1
z70101 zc1 1

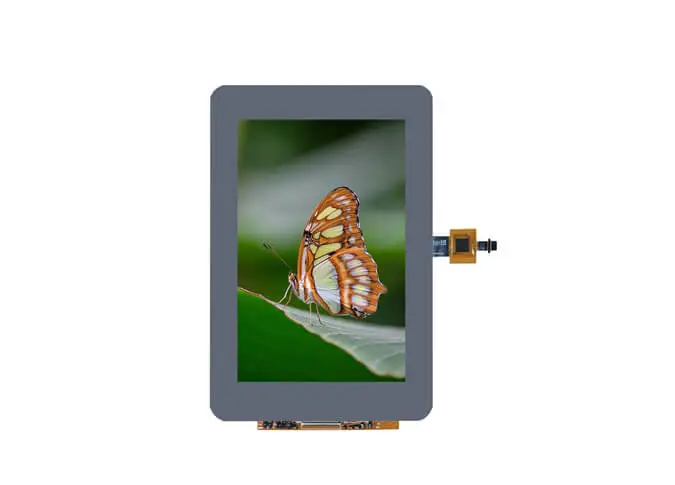

z70101 zc1 2
z70101 zc1 3
z70101 zc1 4
z70101 zc1 5

Overview of Z70101-ZC1 Full HD 7 Inch 1200x1920 LCD Screen Capacitive Touch Panel GT9271 Controller MIPI I2C Interface

1

Z70101-ZC1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with multi-point capacitive touch panel, resolution 1200*1920. This TFT touch display is built-in GT911 touch controller .This a-Si TFT LCD touch screen come with MIPI and I2C interface.

2

If you have special requirement,like driver IC, interface,FPC, touch panel, backlight ,brightness,color etc, we can also customize for you.

3

This 7 inch capacitive touch screen is widely used in  Automotive, Viusal doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, consumer electronics,3D printer, E-readers, Advertising, Vending, Education ect.

General Specifications of Z70101-ZC1 Full HD 7 Inch 1200x1920 LCD Screen Capacitive Touch Panel GT9271 Controller MIPI I2C Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1200(H） × RGB × 1920（V）

pixels

3

Pixel Pitch

26.25(H） × 78.75（V）


um


4

TLCM Outline Dimension

(Without FPC）


125.7*192.8*3.8


mm

5

LCD Active Area

94.5（W） × 151.2（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

HX8279-D01

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 3.6% Min:3.05%

-

12

LCD Contrast Ratio

Typ.: 1200 Min:1000

-

13

FPC Version


-

14

Interface

MIPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/5 Series 4 Parallel (20 lights in total)

-

18

Luminance

1000

nit

19

Weight

TBD

kg


Interface Definition Description of Z70101-ZC1 Full HD 7 Inch 1200x1920 LCD Screen Capacitive Touch Panel GT9271 Controller MIPI I2C Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

No Connection

2-3

IOVCC

I/O POWER SUPPLY

4

GND

Ground

5

RST

LCM RESET PIN

6

NC

No Connection

7

GND

Ground

8

MIPI_0N

Negative MIPI differential data input

9

MIPI_0P

Positive MIPI differential data input

10

GND

Ground

11

MIPI_ 1N

Negative MIPI differential data input

12

MIPI_ 1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI_CKN

Negative MIPI differential CLOCK input

15

MIPI_CKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI_2N

Negative MIPI differential data input

18

MIPI_2P

Positive MIPI differential data input

19

GND

Ground

20

MIPI_3N

Negative MIPI differential data input

21

MIPI_3P

Positive MIPI differential data input

22

GND

Ground

23

HS

Horizontal sync. Signal in RGB I/F.

24

VS

Vertical sync. Signal in RGB I/F.

25

GND

Ground

26

NC/TE

No Connection/Tearing Effect PIN

27

PWM0

LCM PWM PIN

28

NC/BIST

No Connection/Built-in Self-Test PIN

29

NC

No Connection

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33

NC

No Connection

34-35

VSN

Negative Voltage input

36

NC

No Connection

37-38

VSP

Positive Voltage input

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RST voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
