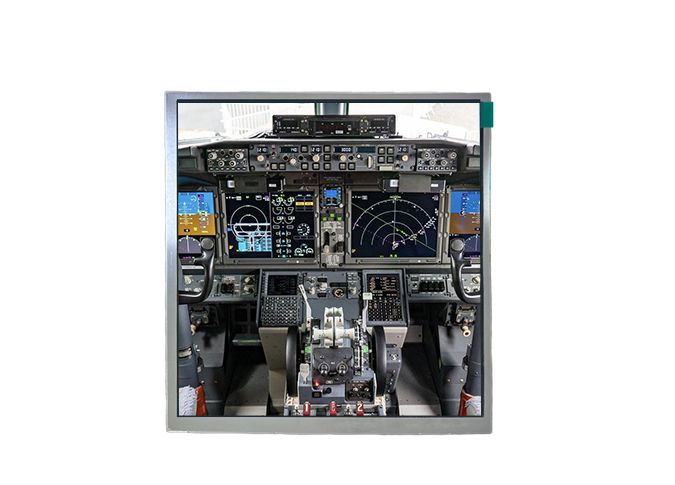

Z70120 Square 7 inch 750x750 LVDS Interface TFT LCD Panel 1500nits Brightness

  • Resolution: 750x750

  • Interface: LVDS

  • View Angle: IPS

  • Brightness: 1500 nits

  • Touch Panel: Support

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH


Z70120
Z70120
Z70120
Z70120

Overview of Z70120 Square 7 inch 750x750 LVDS Interface TFT LCD Panel 1500nits Brightness

1

Z70120,7 inch 750x750 Square LCD Panel with LVDS interface combines a high-resolution display in a distinctive square form factor. Featuring crisp image clarity and color accuracy, it utilizes the LVDS interface for fast, low-power data transfer. Its compact design and reliable performance make it an ideal choice for space-constrained projects requiring high-quality visual output.With high brightness 1000 nits.

2

 If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 7" LCD Screen is widely used on Automotive, Viusal doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, consumer electronics, digital signage, and industrial controls, E-readers, Advertising, Vending, Education ect

Specifications of Z70120  Square 7 inch 750x750 LVDS Interface TFT LCD Panel 1500nits Brightness


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7

inch

2

Display Resolution

750(H) × RGB × 750(V)

pixels

3

Pixel Pitch

-

um

4

LCM Outline Dimension

(Without FPC)

138.87 (W) ×141.47.00 (H) ×6.50 (T)

mm

5

LCD Outline Dimension

/

mm

6

LCD Active Area

127.13(W) ×127.13(H)

mm

7

View Direction (Gray Inversion)

IPS

-

8

Driver IC

/

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.2%

-

13

LCD Contrast Ratio

Typ.: 700

-

14

FPC Version

/

-

15

Interface

LVDS

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 7 Parallel (27 lights in total)

-

19

Luminance

Typ.:1500

nit

20

Weight

TBD

kg
