Z80008-SPM288 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN

  • Size: 8 inch

  • Resolution: 800*1280

  • Active Area:107.64*172.72mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness:380 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

Request A Quote
8 inch lcd
8 inch lcd
8 inch lcd panel
8 inch lcd screen
8 inch tft
8 lcd
8 lcd panel
8 lcd screen
8 lcd tft
8 tft
8 tft lcd
8 tft screen
1280x800 ips
1280x800 lcd
1280x800 tft
lcd 1280x800
tft 1280x800
display 1280x800
1280x800 ips display
1280x800 lcd panel
8 inch lcd module
8 inch ips lcd module
8 inch ips lcd
8 inch 8001280 lcd
8 inch 800 1280 lcd module
8 lcd module
8 tft screen

Overview of Z80008-SPM288 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN

1

Z80008 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*1280 resolution. IPS (In-plane Switching) technique make this 8" LCD module have a wider view angle. This LCD display is built-in GH8555BL driver IC. This a-Si Square TFT  LCD module come with MIPI interface, 380cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, as a custom LCD display manufacturer China, we can also customize for you.

3

As a professional LCD display module factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 8 inch LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, elevator advertising, etc.

Specifications of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

44.85 (H) × 134.55 (V)

um

4

LCM Outline Dimension

(Without FPC）

114.60 (W) × 184.10 (H) × 2.61 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 180.52 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64 (W) × 172.22 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.55% Min: 5.0%

-

13

LCD Contrast Ratio

Typ.: 1500 Min: 1200

-

14

FPC Version

Z80008-SPM288/SPM168H V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/4 Series 6 Parallel (24 lights in total)

-

19

Luminance

380

nit

20

Weight

0.105

kg


Interface Definition Description of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4-7

NC

No Connection

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

NC

No Connection

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

TCP

Positive MIPI differential CLOCK input

21

TCN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26

D3P

Positive MIPI differential data input

27

D3N

Negative MIPI differential data input

28

GND

Ground

29

LCD_ID1

LCM ID PIN

30

LCD_RST

LCM RESET PIN

31

LCD_ID2

LCM ID PIN

32

IOVCC

I/O POWER SUPPLY (1.8V）

33-34

LCD_VCC

POWER SUPPLY

35

GND

Ground

36

NC

No Connection

37

GND

Ground

38

NC

No Connection

39

LCD_ID3

LCM ID PIN

40

NC

No Connection

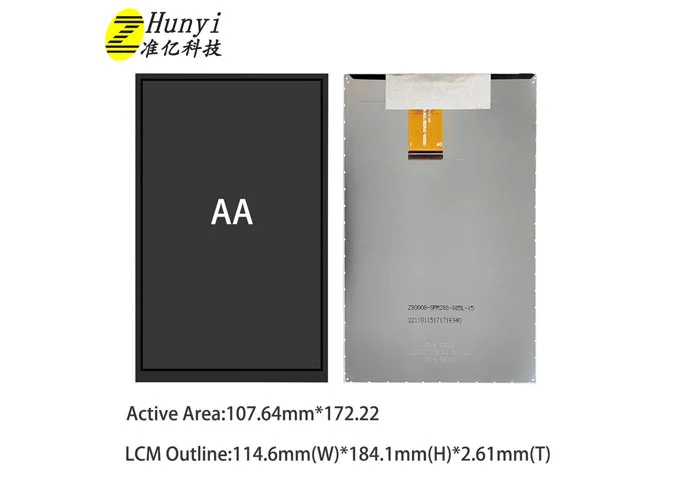

Mechanical Drawing of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


Mechanical Drawing of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN
