Z80017-ZC 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver

  • Size: 8 inch

  • Resolution: 800*1280

  • LCD Interface: MIPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: GH8555BL

  • Touch Controller: GT911

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
8 inch touch screen
8 inch touch screen
8 inch raspberry pi screen
8 inch touch screen raspberry pi
raspberry pi 8 inch screen
raspberry pi touchscreen 8 inch
8 inch lcd touch screen
8 inch screen for raspberry pi
8 inch capacitive touch screen
8 inch capacitive screen
8 inch capacitive tft screen
capacitive tft lcd display
capacitive tft lcd
capacitive tft display
capacitive tft lcd panel
capacitive tft lcd screen
capacitive lcd screen
capacitive lcd panel
capacitive tft screen
capacitive tft panel
capacitive tft module
capacitive screen
capacitive tft lcd module

Overview of Z80017-ZC 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver

1

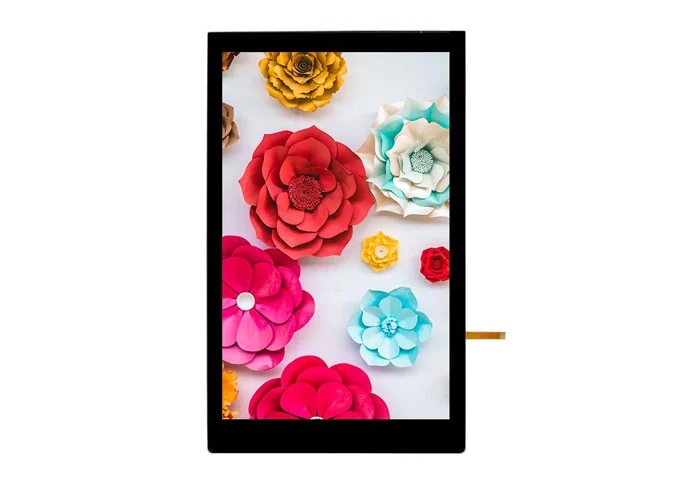

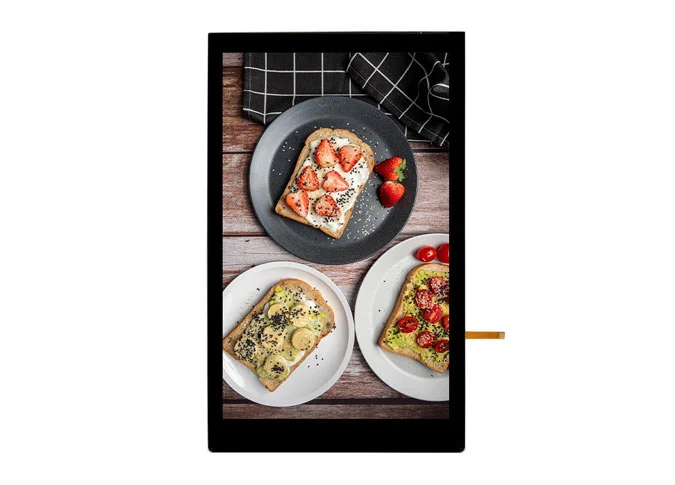

Z80017-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 800*1280. This wholesale TFT LCD display is built-in GH8555BL LCD driver IC and GT911 touch controller. This a-Si TFT LCD touch module come with MIPI and I2C interface. Multi-point touch. G+G structurer.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, as a custom LCD display supplier, we can also customize for you.

3

As a LCD display module factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 8 inch LCD touch screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, robot, etc.

General Specifications 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

44.85 (H) × 134.55 (V）

um

4

LCM Outline Dimension

(Without FPC）

114.65 (W) ×184.15 (H) ×2.55 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 180.52 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64 (W) ×172.22 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.55% Min: 5.0%

-

13

LCD Contrast Ratio

Typ.: 1500 Min: 1200

-

14

FPC Version

Z80017-P39H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 7 Parallel (21 lights in total)

-

19

Luminance

280

nit

20

Weight

0.211

kg


Interface Definition Description 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver


2.1 LCM PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

TCP

Positive MIPI differential CLOCK input

3

TCN

Negative MIPI differential CLOCK input

4

GND

Ground

5

TDP0

Positive MIPI differential data input

6

TDN0

Negative MIPI differential data input

7

GND

Ground

8

TDP1

Positive MIPI differential data input

9

TDN1

Negative MIPI differential data input

10

GND

Ground

11

TDP2

Positive MIPI differential data input

12

TDN2

Negative MIPI differential data input

13

GND

Ground

14

TDP3

Positive MIPI differential data input

15

TDN3

Negative MIPI differential data input

16

GND

Ground

17

LCM_RST

LCM RESET PIN

18

DSI_TE

Tearing Effect PIN

19

GND

Ground

20

VIO18_PMU

I/O POWER SUPPLY (1.8V）

21

NC

No Connection

22

VIO28_PMU

POWER SUPPLY (2.8V）

23

GND

Ground

24

TP_SDA

TP I2C data (SDA) data input (MOSI)

25

TP_SCL

TP I2C clock (SCL) clock (SCLK)

26

TP_RESET

TP RESET PIN

27

TP_INT

TP Interrupt PIN

28

TP_VDD

TP POWER SUPPLY (2.8V）

29

GND

Ground

30-33

VLEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

34

NC

No Connection

35-38

VLEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

39

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

TP_SDA

TP I2C data (SDA) data input (MOSI)

2

TP_SCL

TP I2C clock (SCL) clock (SCLK)

3

TP_RST

TP RESET PIN

4

TP_INT

TP Interrupt PIN

5

GND

Ground

6

TP_VDD

TP POWER SUPPLY (2.8V）


Mechanical Drawing 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver


3.1 LCM


Mechanical Drawing 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver


3.2 TLCM


Mechanical Drawing 8 Inch 800*1280 TFT Capacitive Touch Screen MIPI I2C Interface GH8555BL Driver
